Solar-Powered Battery Swapping

Our solar battery swapping system converts solar energy into direct-current power and delivers it to battery swap cabinets through a Solar DC Energy Hub. This transforms the mobility energy network into a clean energy network while significantly reducing electricity costs.

Get Started Contact Us

Solar Panels

Solar DC Energy Hub

Solar Battery Swapping System

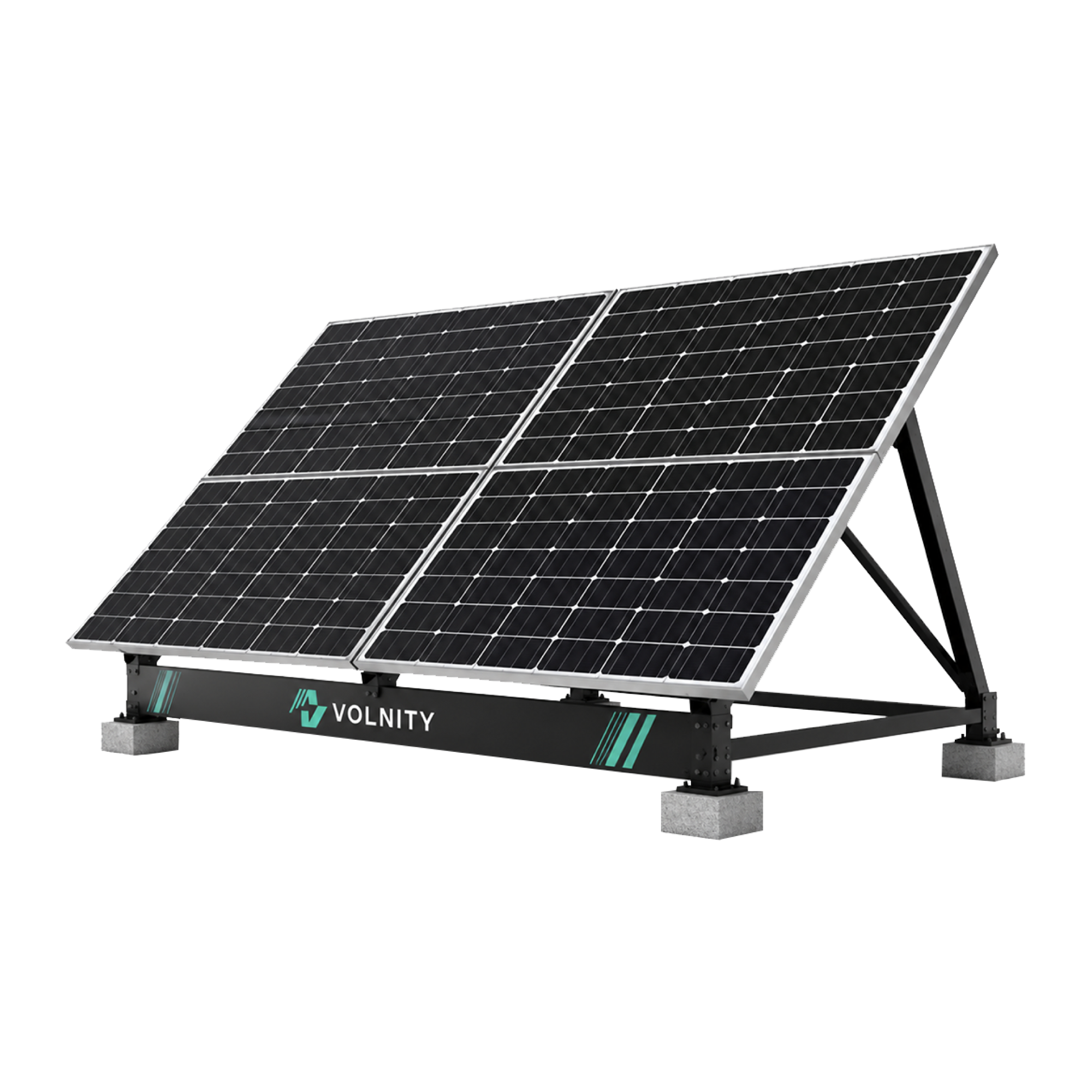

Volnity SolarMax Panel

A high-efficiency monocrystalline TOPCon solar module designed to generate more clean energy from limited installation space. With conversion efficiency of up to 23%, approximately one square meter of solar panels can generate up to 1 kWh of electricity per day under favorable sunlight conditions.

Maximum Power: 720W
Maximum Conversion Efficiency: 23.14%
Temperature Coefficient: -0.3%/°C
Power Warranty: 30 Years
Cell Specification: 182 × 91 mm Monocrystalline Silicon Cells
Junction Box: IP68 Protection Rating
Front Glass: 3.2 mm High-Transmittance Coated Tempered Glass
Backsheet: Aging-Resistant Film

Get More Information

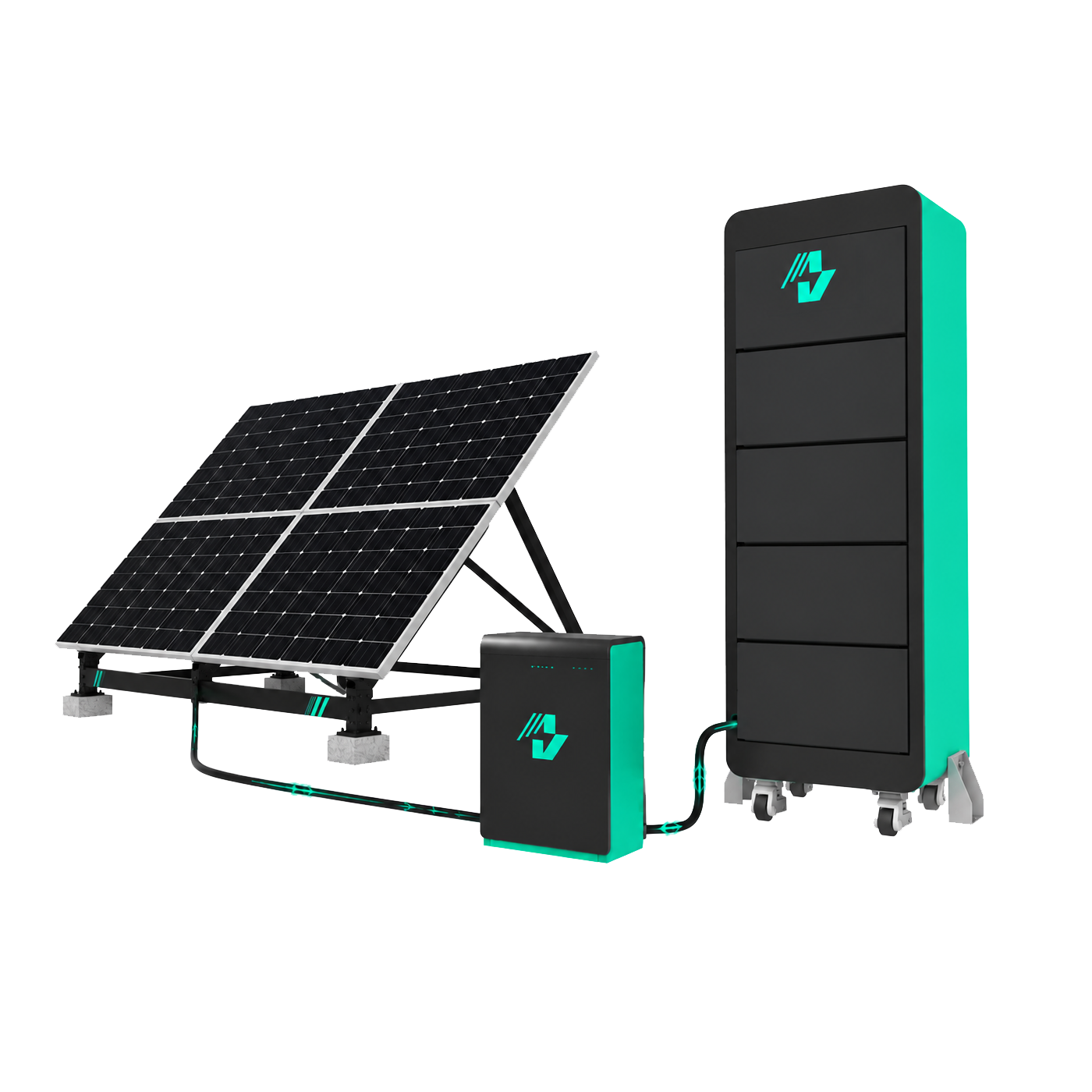

Volnity SolarSwap System

An intelligent solar-powered battery swapping solution that connects solar panels, the Solar DC Energy Hub, and smart battery swap cabinets. Solar energy is temporarily buffered and efficiently delivered through the DC Energy Hub, while the swap cabinet dynamically switches between solar power and grid electricity to ensure stable operation, reduce energy costs, and build a cleaner mobility network.

Swap Cabinet Feature: Supports dynamic switching between grid power and solar power
Energy Hub Capacity: 3 kWh
Energy Hub Current Type: Direct Current (DC)
Switching Mode: Automatic or Manual
Solar Power Generation: Approximately 1 kWh per m² in 4.5 hours
Installation Options: Rooftop, Ground-Mounted, or Floating
Swap Cabinet Discharge Function: Not Currently Supported

Get More Information

Chat with Us on WhatsApp

+86 13428916179

Have questions about our products or partnership opportunities? Message us on WhatsApp and our team will get back to you shortly.

03 Reliable Hardware for Real-World Operations

Frequently Ask Questions

Our hardware can be configured for different electric motorcycles, three-wheelers, and light electric vehicles. Battery voltage, communication protocols, connectors, vehicle controllers, and BMS integration are verified before deployment to ensure system compatibility.

We provide lithium iron phosphate and semi-solid-state battery solutions, including single-battery and dual-battery systems. Swapping stations are available in 5-slot, 6-slot, 8-slot, and 12-slot configurations for different fleet sizes and operating environments.

The system combines battery-level BMS monitoring, charging control, temperature monitoring, abnormal-condition alerts, and remote device management. Hardware configurations are selected according to the local climate, electricity conditions, installation environment, and operating requirements.

We provide installation guidance, technical training, operating manuals, remote diagnostics, spare-parts planning, and maintenance support. For larger projects, we can also assist with local service-center development and on-site operational incubation.
